Introduction

Liquid nitrogen is relied on every day across a variety of sectors. It is used extensively in food processors for quick freezing purposes. It is even used for cryogenic storage in several healthcare facilities. Until then, electronics manufacturers utilize for precise cooling. So, the Nitrogen Liquefaction Process analysis will help to choose a suitable production process by Rick Roth.

Today, liquefaction systems that utilize state-of the-art refrigeration technology paired with superb heat interchange. In addition, they continuously produce liquid nitrogen while reducing power consumption. But as demand from industry rises, more companies are installing on-site liquefaction systems. As a result, they achieve enhanced security of supply and reduced costs in operation over the long term.

Nitrogen Liquefaction Process: What Is a Nitrogen Liquefaction Process?

Nitrogen Liquefaction Process – The high-purity nitrogen gas is liquefied into liquid nitrogen at temperatures around -196°C by means of compression, heat exchange, expansion refrigeration and deep cryogenic cooling.

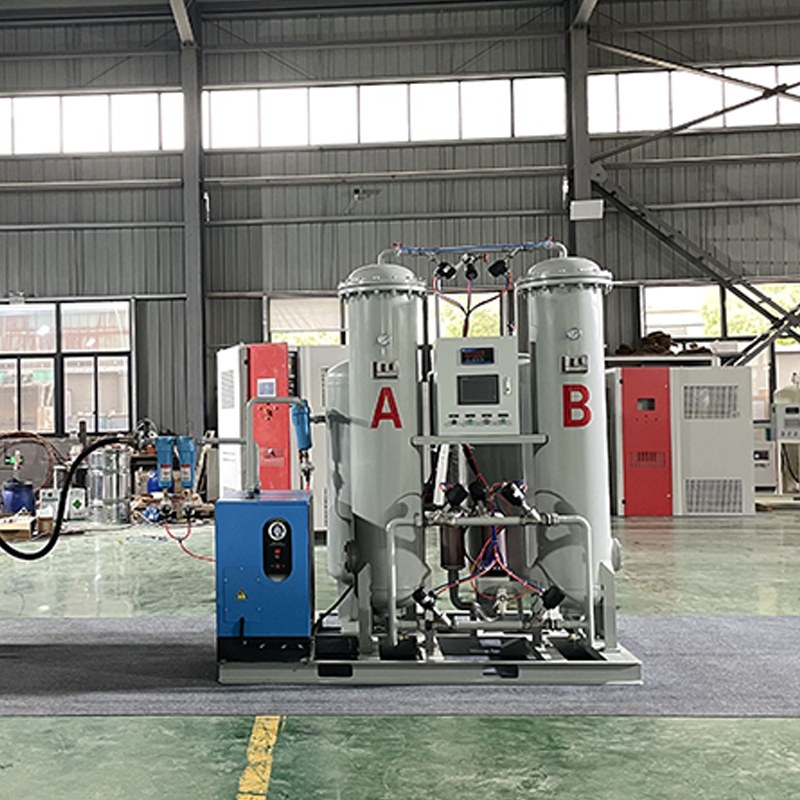

Gaseous nitrogen is provided to many liquefaction plants from either a PSA Nitrogen Generator or Cryogenic Air Separation Plant. The gas is then cooled by the liquefaction system until it becomes a liquid.

Nitrogen liquefaction starts from purified nitrogen rather than atmospheric air as in air separation, As a result, the process is based on precooling your refrigeration rather than separation of gases.

l Liquid Nitrogen Plant

l PSA Nitrogen Generator

l Cryogenic Air Separation Plant

l Air Separation Unit

Why Nitrogen Liquefaction Is Important

There are a few practical benefits to liquid nitrogen.

It keeps more nitrogen in a lower volume, first.

Additionally, it offers quick cooling required for various industrial processes.

Also, it has long-term support for cryogenic storage.

Moreover, numerous sectors use liquid nitrogen as opposed to gaseous nitrogen.

With this in mind, on-site liquefaction not only lowers the transportation cost, but also enhances production flexibility.

This is why different manufacturers are also putting their money in nitrogen liquefaction technology.

Step-by-Step Nitrogen Liquefaction Process

The Nitrogen Liquefaction Process includes a multiple continuous stages.

Step 1. Nitrogen Supply

It offices your coal gas onto the high purity nitrogen (N₂) that has been prematurely vaporized.

Many systems supply nitrogen from a PSA (pressure swing adsorption) plant or an air separation unit.

Thus, the liquefaction efficiency depends directly on gas purity.

Step 2. Nitrogen Compression

Next, compressors increase nitrogen pressure.

Higher pressure improves cooling performance.

Also, compressors that are in great working condition save power consumption as well.

Step 3. Pre-Cooling

The compressed nitrogen proceeds into high-efficiency both heat exchangers.

Incoming nitrogen is cooled by the cold return gas.

Consequently, it recovers refrigeration energy from the system.

Consequently, power consumption decreases.

Step 4. Expansion Refrigeration

Some of the nitrogen goes into an expansion turbine or a Joule-Thomson expansion valve.

The pressure drops rapidly.

Thus, the temperature of the gas drops dramatically.

The refrigeration for liquefaction is produced in this stage.

Step 5. Deep Cryogenic Cooling

The rest of the nitrogen passes through more heat exchangers.

Each stage reduces the temperature even further.

Then the gas finally reaches around -196 Celsius?

Step 6. Nitrogen Liquefaction

Liquid nitrogen, as its name implies, is frozen nitrogen at the liquefaction temperature.

Next, the nitrogen is moved by the plant into vacuum-insulated storage vessels.

This stage closes the Nitrogen Liquefaction Process

Nitrogen Liquefaction Process and Its Main Equipment

Every system contains several systems.

Nitrogen Compressor

The compressor supplies pressurized nitrogen.

Therefore, it determines production capacity.

Plate-Fin Heat Exchanger

Heat: The heat exchanger in its fundamental purpose and principle works to transfer refrigeration energy from the cold source to the warmer environment - also keeping it very efficient.

Moreover, it improves system efficiency.

Expansion Turbine

The turbine generates cryogenic refrigeration.

Thus nitrogen passes through its liquefaction temperature.

Joule-Thomson Valve

In some systems, a Joule-Thomson valve is used for the final expansion.

If it does not, this component performs supplemental cooling upstream of liquefaction.

Cold Box

The cryogenic equipment is contained in a cold box.

Furthermore, it minimizes heat leakage.

Liquid Nitrogen Storage Tank

Liquid nitrogen is securely maintained in a storage tank.

High-quality insulation reduces evaporation losses.

l Cryogenic Air Separation Equipment

l Liquid Nitrogen Plant

l LCO2 Storage Tank

l Liquid Oxygen Plant

Common Nitrogen Liquefaction Cycles

Industrial liquefaction is enabled by the support of various refrigeration cycles.

Linde-Hampson Cycle

Compression, heat exchange and Joule-Thomson Expansion cycles are used in the Linde-Hampson cycle.

This design is definitely the simplest operation type many small liquefaction systems choose this method.

Claude Cycle

The cycle is generic [16]: it combines an expansion turbine by Joule-Thomson expansion, which based on Claude etal.

Hence its efficiency is better than the Linde-Hampson cycle.

This the process used by most medium and large plants.

Mixed Refrigerant Cycle

Other recent systems use blended refrigerants.

This design allows for further energy savings.

Consequently, operating costs decrease.

Factors That Affect Liquefaction Efficiency

Several factors influence system performance.

Nitrogen Purity

Higher purity improves liquefaction efficiency.

Compressor Performance

Efficient compressors reduce electricity consumption.

Heat Exchanger Efficiency

Lower operating cost from better heat recovery.

Expansion Turbine Design

Modern turbines generate more refrigeration.

Automation System

CPU/Advanced PLC With the development of Internet technology, now combine with big data.

This is why in the long term, profitability depends greatly on the quality of your equipment.

Applications of Liquid Nitrogen

Liquid nitrogen serves many industries.

l Food Processing

Manufacturers freeze products rapidly.

l Healthcare

Hospitals preserve biological materials.

l Pharmaceutical Industry

Companies safely store vaccines and medicines.

l Electronics Manufacturing

Factories cool sensitive components.

l Chemical Industry

Nitrogen for Inerting and blanketing parents.

l Scientific Research

Scientists carry out tests on materials by cooling them down.

l Industrial Gas Plant

l Nitrogen Plant Manufacturer

l Small Liquid Nitrogen Machine

Nitrogen Liquefaction Process vs PSA Nitrogen Generation

Nitrogen Liquefaction System Selection

Several factors deserve careful consideration.

The first task is determining the demand for liquid nitrogen on daily basis.

Next, determine nitrogen purity requirements.

Moreover, evaluate available installation space.

Furthermore, compare energy consumption.

Lastly, select a manufacturer that has done cryogenic successfully for years.

Professional manufacturers also offer installation instructions, commissioning, and long-term technical support.

Why Choose Nanjing Bangwin Gas

Shenzhen Bangwin Gas is engaged in industrial gas generation and cryogenic engineering applications.

Official Website:

https://bangwingas.com/

The company supplies:

l Liquid Nitrogen Plant

l Nitrogen Liquefaction Plant

l Cryogenic Air Separation Plant

l Air Separation Unit

l PSA Nitrogen Generator

l PSA Oxygen Generator

l VPSA Oxygen Plant

l Cryogenic Air Separation Equipment

Nanjing Bangwin Gas provides:

l Customized engineering solutions

l Energy-efficient plant designs

l Turnkey project delivery

l Professional commissioning

l Global after-sales support

Therefore, customers get proven efficient and footprint-less liquid nitrogen production systems.

Cryogenic cylinders and storage tanks:

https://bangwingascylinder.com/

FAQ

1. What is the nitrogen liquefaction process?

The nitrogen liquefaction process converts high-purity nitrogen gas into liquid nitrogen through compression, refrigeration, heat exchange, and expansion cooling.

2. What temperature does nitrogen liquefy?

Nitrogen liquefies at approximately -196°C under atmospheric pressure.

3. Can a PSA nitrogen generator supply a liquefaction plant?

Yes. Many liquefaction systems use a PSA nitrogen generator as the nitrogen source.

4. Which liquefaction cycle offers higher efficiency?

The Claude cycle usually provides higher efficiency than the Linde-Hampson cycle.

5. What industries use nitrogen liquefaction systems?

Food processing, healthcare, pharmaceuticals, electronics, chemicals, and research institutions commonly use these systems.

6. Why choose Nanjing Bangwin Gas?

Nanjing Bangwin Gas offers customized cryogenic equipment, advanced engineering, and comprehensive technical support for industrial gas projects.

Conclusion

The Nitrogen Liquefaction Process utilizes cryogenic refrigeration technology to pre-cool and liquefy high-purity nitrogen gas into liquid nitrogen.

Additionally, modern liquefaction systems offer stable production, superior energy efficiency and a long-term cost advantage. They are therefore still the go to answer for sectors demanding a continual source of liquid nitrogen.

Whether you require a Liquid Nitrogen Plant, Nitrogen Liquefaction Plant or an all-in-one cryogenic solution, Nanjing Bangwin Gas offers engineering that is tailored to your needs, reliable equipment and professional global support.

To learn more on high-end industrial gas generation solutions, visit bangwingas.com
