Introduction

Liquid nitrogen is used in many industries for the purposes of cooling, freezing, and inerting. So, having knowledge of Liquid Nitrogen Manufacturing Process leads businesses to opt a right production unit.

Cryogenic air separation technology is what modern liquid nitrogen, plants utilize. In addition, they offer a continuous production with large throughput with high purity and stability.

In line with industrial demand and investment, several companies are investing in on-site liquid nitrogen manufacturing systems. As a result, they decrease supply prices and enhance operational autonomy.

Liquid Nitrogen Manufacturing Process

In the case of liquid nitrogen, the entire production process for nitrogen in our atmosphere can be referred to as a Liquid Nitrogen Manufacturing Process.

It involves compressing, purifying, cooling (the air) separating and liquefying the gas.

As air consists of roughly 78% nitrogen, manufacturers obtain it by means of cryogenic technology. After that, they freeze nitrogen to - 196 C making it liquid.

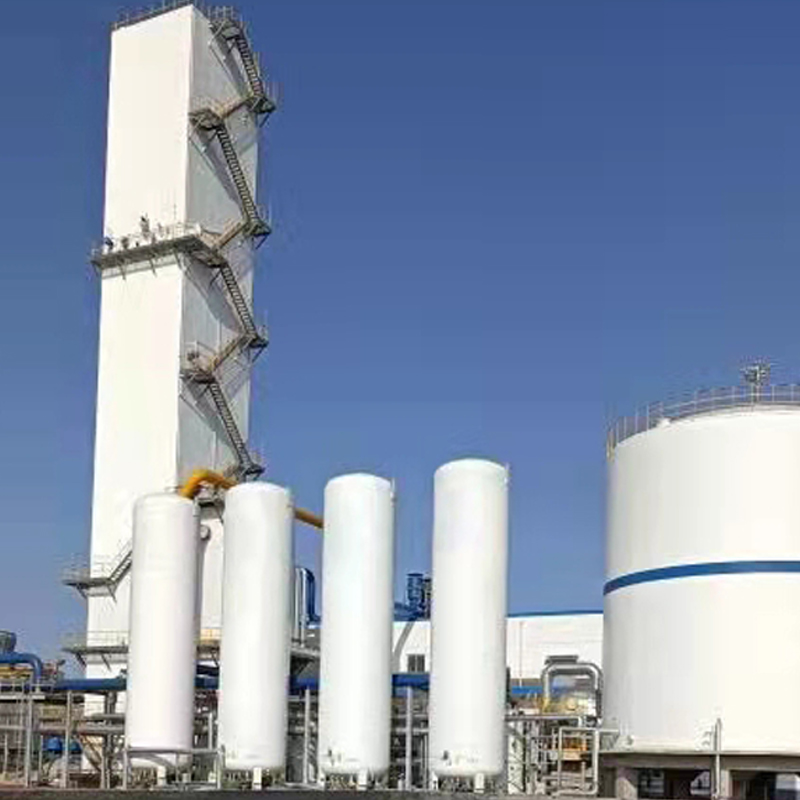

l Liquid Nitrogen Plant

l Cryogenic Air Separation Plant

l Air Separation Unit

l Cryogenic Air Separation Equipment

Why Liquid Nitrogen Manufacturing Matters

Liquid nitrogen is an important liquid used in contemporary industry.

First, it enables rapid cooling.

Furthermore it saves biological and food materials.

It also safeguards against oxidation as the manufacturing process to occur.

Liquid nitrogen also provides necessary assistance in science and medical fields as well.

This makes practice up-to-date manufacturing systems for mechanical steady-state very important.

Step-by-Step Liquid Nitrogen Manufacturing Process

Liquid Nitrogen Manufacturing Process involves multiple continuous processes.

Step 1. Air Intake

That atmospheric air is sucked into the compressor by the system.

Next, intake filters prevent dust and large contlnue reading.

This is where then, equipment protection starts from.

Step 2. Air Compression

After, it puts air under pressure in a compressor.

Heat transfer efficiency increases with higher pressure.

In addition, new compressors save energy.

Step 3. Air Purification

Now the compressed air enters in purification units.

These units remove:

l Moisture

l Carbon dioxide

l Oil vapor

l Hydrocarbons

l Dust particles

As a result we can ensure cryogenic equipment wont freeze up and cause us any damage

Step 4. Heat Exchange

Afterwards, the clean air travels through plate-fin heat exchangers.

Cold gas exiting cools the incoming air.

So the system retrieve refrigeration energy.

Consequently, energy efficiency improves significantly.

Step 5. Cryogenic Separation

Air enters the distillation column after being cooled.

Inside the column:

l Nitrogen rises upward

l Oxygen settles at the bottom

l Argon remains in the middle

Hence the gas separation in continuous mode.

Step 6. Nitrogen Liquefaction

The nitrogen, which is now purified, continues to cool at -196°C.

After that, it changes into liquid nitrogen.

Lastly, it goes into insulated storage tanks.

This stage finalizes the process of Liquid Nitrogen Manufacturing Process.

The core liquid nitrogen manufacturing equipment

A full system comprises a few essential components.

Air Compressor

The compressor supplies pressurized air.

Therefore, it determines system capacity.

Air Purification System

This system removes contaminants.

Consequently, it guarantees a reliable performance.

Plate-Fin Heat Exchanger

The exchanger improves energy recovery.

Moreover, it reduces operating costs.

Expansion Turbine

The turbine generates cryogenic cooling.

Therefore, nitrogen reaches liquefaction temperature.

Cryogenic Distillation Column

Separates nitrogen from oxygen in a column

So it is the heart of the system.

Liquid Nitrogen Storage Tank

LN2 is stabilized by the storage tank.

Moreover, insulation reduces evaporation losses.

l Cryogenic Air Separation Equipment

l Liquid Oxygen Plant

l LCO2 Storage Tank

l Industrial Gas Plant

Cryogenic Air Separation Technology

Cryogenic technology is still the most trusted approach to make nitrogen.

It provides: Compared with other systems

l High nitrogen purity

l Continuous operation

l Large-scale production

l Oxygen and argon co-production

l Long-term energy efficiency

This is why cryogenic units are a common practice at all industrial plants.

Factors That Affect Manufacturing Efficiency

Several factors influence production performance.

Air Quality

Cleaner air improves system stability.

Compressor Efficiency

Efficient compressors reduce electricity usage.

Heat Exchange Performance

Better heat recovery increases efficiency.

Distillation Design

Optimized columns improve nitrogen purity.

Automation System

PLC control improves operational stability.

So, the quality of equipment directly impacts cost and yield.

Applications of Liquid Nitrogen

Liquid Nitrogen Manufacturing Process: Introduction to Supply in Numerous Industries

Food Industry

Application — Used in Flash Freezing and Preservation

Healthcare

Cryogenic storage of biological samples.

Pharmaceuticals

Utilised for preservation of vaccine and medicine

Electronics

Used for cooling sensitive components.

Chemical Industry

Used for inerting and protection.

Research Laboratories

Used for cryogenic experiments.

l PSA Nitrogen Generator

l Nitrogen Plant Manufacturer

l Industrial Gas Plant

Liquid Nitrogen Manufacturing Process vs PSA Nitrogen System

What Is a Liquid Nitrogen Plant?

Several factors require evaluation.

First, determine daily nitrogen demand.

Next, define purity requirements.

Moreover, consider installation space.

Furthermore, evaluate energy consumption.

Last, Toolingup as a professional manufacturer that has good engineering strength.

Why Choose Nanjing Bangwin Gas

Nanjing Bangwin Gas is a specialized manufacturer of industrial gas systems.

Official Website:

https://bangwingas.com/

The company provides:

l Liquid Nitrogen Plant

l Cryogenic Air Separation Plant

l Air Separation Unit

l PSA Nitrogen Generator

l PSA Oxygen Generator

l VPSA Oxygen Plant

l Liquid Oxygen Plant

Additionally, the company provides bespoke engineering solutions.

It provides installation guidance and technical support, even worldwide.

Because of this, it gives customers fixed as well as effective gas manufacturing systems.

For storage systems and cylinders:

https://bangwingascylinder.com/

FAQ

l What is the liquid nitrogen manufacturing process?

It is the industrial process of producing liquid nitrogen from air through cryogenic separation and liquefaction.

l What temperature is needed for liquid nitrogen?

Nitrogen liquefies at approximately -196°C.

l What industries use liquid nitrogen manufacturing systems?

Food, healthcare, electronics, pharmaceuticals, chemicals, and research industries.

l Is cryogenic manufacturing better than PSA?

Yes, for liquid nitrogen production, cryogenic systems are more suitable.

l Who manufactures liquid nitrogen plants?

Nanjing Bangwin Gas designs and supplies customized industrial gas production systems worldwide.

Conclusion

Introduction to Liquid Nitrogen Manufacturing Process that establishes cryogenic technology which will serve as a reliable process of generating high-purity liquid nitrogen.

Furthermore, it guarantees satisfactory provision, elevated productivity and prolonged cost savings. For this reason, industries further deploy on-site manufacturing systems.

Nanjing Bangwin Gas provides advanced cryogenic equipment, customized engineering and professional global technical support based on international standards.
