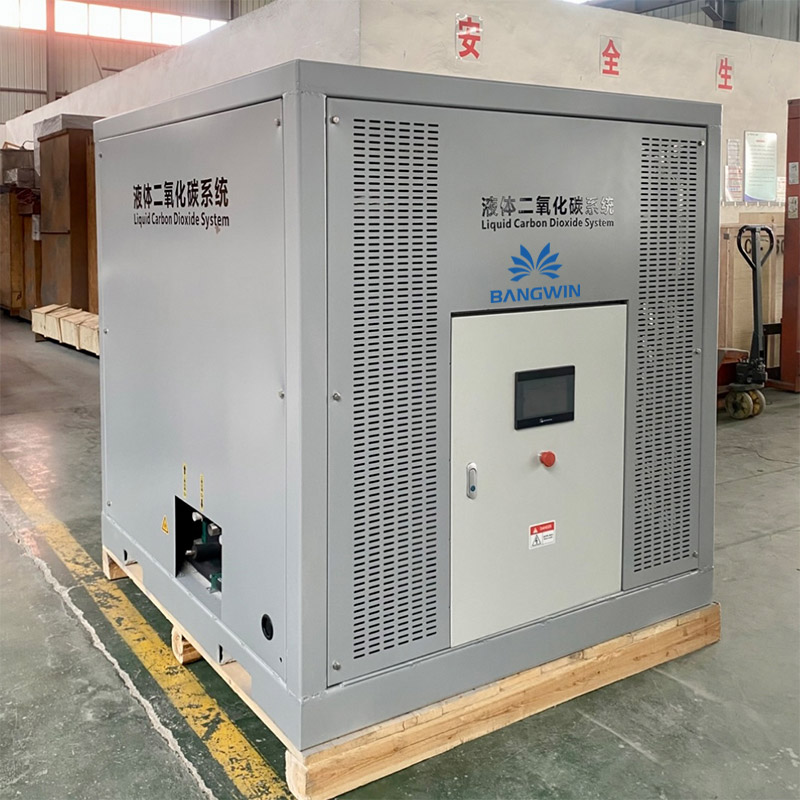

Carbon Dioxide Equipment – Complete Co₂ Generation And Recovery System
Oct 22 , 2025Carbon Dioxide Equipment Is a Set Of Equipment For Producing, Purifying, And Liquefying Co₂ Gas From Natural Gas Or Industrial Waste Gas. Our Complete Set Of Co₂ Equipment Is Highly Reliable, Stable, And Energy-Efficient In Operation And Is Used In The Food And Beverage, Chemical, And Welding Industries. You Can Recover Co₂ From Fermentation, Or Generate Co₂ By Purifying Combustion Exhaust Gas, The Complete Carbon Dioxide Equipment Will Continuously Provide You With Safe And Economical Co₂ Gas Or Liquid Co₂.
l Product Name: Carbon Dioxide Equipment
l Operation: Co₂ Generation / Purification / Compression / Liquefaction
l Raw Gas Source: Fermentation Gas / Flue Gas / Natural Co₂ Gas
l Purity: Up To 99.99%
l Capacity: 100~10,000kg/h (Customized According To The Actual Gas Source)
l Application: Food & Beverage, Welding, Firefighting, Chemical, Dry Ice Production, Etc.
l Control System: Plc + Automatic Monitoring System
l Superior And Continuous Co₂ Purity And Flow
l Low Power Consumption And Optimal Compression System Design
l Automatic And Intelligent Operation With Plc Control System
l Made Of High-Grade 304/316 Corrosion-Resistant Stainless Steel
l Compact And Portable Structure And Easy Installation
l Modular System Configuration, Convenient Maintenance And Upgrades
l Suitable For Gas Or Liquid Co₂ Production
|
Parameter |
Specification |
Unit |
|
Co₂ Purity |
99.9 – 99.99 |
% |
|
Capacity |
100 – 10,000 |
Kg/h |
|
Co₂ Source |
Fermentation / Combustion / Natural |
— |
|
Working Pressure |
0.8 – 2.0 |
Mpa |
|
Operating Temperature |
–40 – +40 |
°C |
|
Power Supply |
380V / 50Hz (Customizable) |
— |
|
Control System |
Plc + Touch Screen |
— |
l High Purity: Efficient Removal Of Impurities Such As H2S, O2, And Hydrocarbons, Ensuring High Purity Of Co2.
l Energy Efficiency: Advanced Compressor And Cooling System Reduce Energy Consumption.
l Safety: Multiple Safety Valves And Gas Leakage Detectors Ensure Safe Operation.
l Automatic Control: Plc Automatic Control System For Stable, No Manual Operation.
l Wide Application: Supports Both Beverage-Grade And Industrial-Grade Co2.
l Easy Maintenance: Modular Design For Quick Maintenance And Component Replacement.
l Food & Beverage Industry: Carbonated Drinks Production, Beer Production
l Chemical Industry: Chemical Synthesis, Neutralization Process
l Dry Ice Production: Production Of Dry Ice By Liquefaction And Solidification Of Co2
l Welding & Firefighting: Welding Shielding Gas System, Fire Extinguishing System
l Agriculture & Greenhouse: Co2 Enrichment And Growth Acceleration
l Gas Source: The Raw Material Co2 Can Be Flue Gas Or Fermentation Gas.

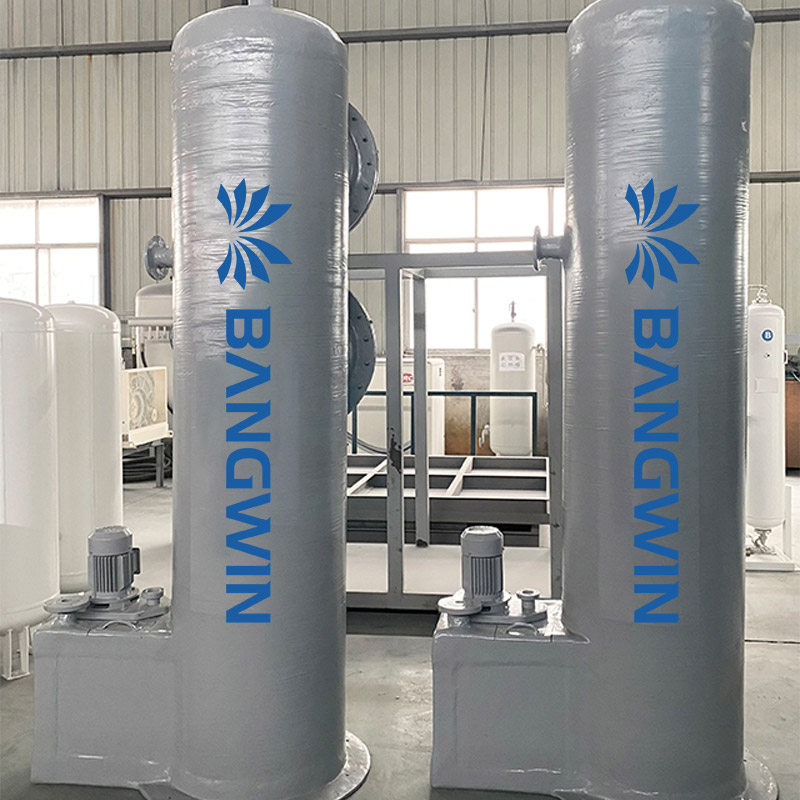

l Gas Purification: Fermentation Or Combustion Waste Gas Is Pre-Scrubbed By Scrubbers, Then Sent To The Activated Carbon Filter To Remove Impurities And Reach a High Degree Of Purification.

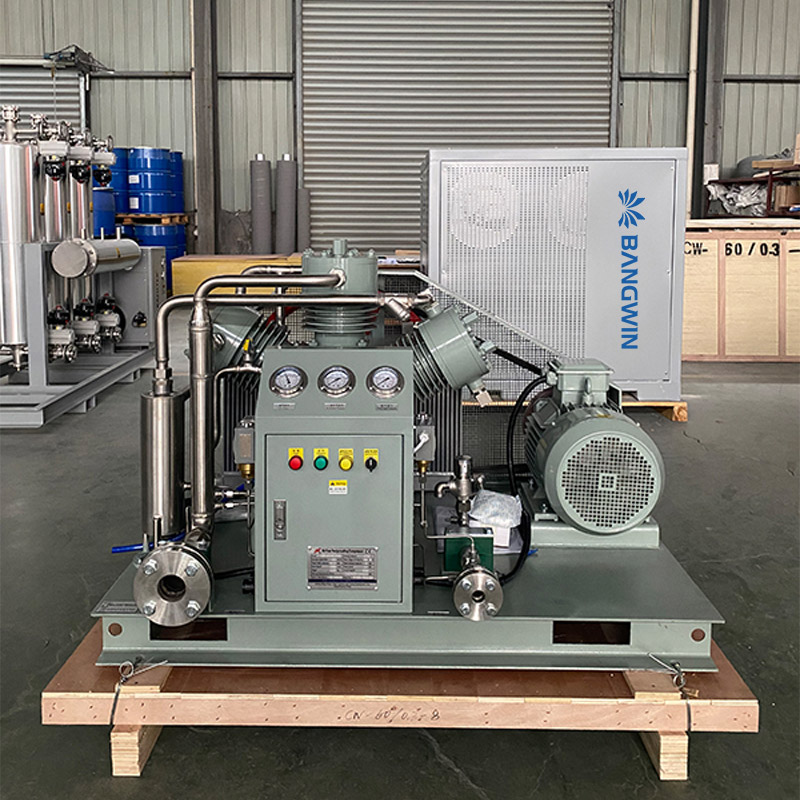

l Gas Compression: The Purified Co2 Gas Is Compressed By The Compressor To Reach The Set Working Pressure.
l Cooling And Liquefaction: The Compressed Co2 Is Liquefied By The Cooling System.
l Storage: Liquid Co2 Is Stored In a Liquefied Co2 Storage Tank For Subsequent Use Or Transportation.
l Iso 9001 Quality Management Certification
l Ce Certified Equipment
l Pressure Vessel Certification (Ped / Asme Available)
l Factory Performance Test And Leak Test
l Export-Standard Packaging For Shipment
A1: Co₂ Purity Is Generally Above 99.9% Depending On The Input Gas Source And Specific Process Configuration.
A2: Yes, The Equipment Is Very Suitable For The Recovery Of Co2 From Fermentation Processes. It Is Often Used In Breweries, Fermentation Plants, And Other Industries With a High Recovery Rate.
A3: The General Installation Period Is 25-45 Days, Which Varies Based On The Specific Configuration Of The Plant And Site Conditions.
